Wall Profiles
The Wall C75 profile is produced in three thicknesses (0.40 / 0.42 / 0.50 mm) — thickness can be selected according to the project's load requirements.
Wall profiles form the framework of partition and dry-lining walls. The U profile is the horizontal track at floor and ceiling, setting the wall's line and width. The C profile sits vertically inside that track and is the stud the plasterboard is screwed to. The profile width (50 / 75 / 100 mm) determines the wall's overall thickness and therefore the space available inside it for insulation and building services.
WHERE IT IS USED
- Partition walls (single or double frame)
- Dry-lining — a second face built in front of an existing wall
- Shaft and service walls
Assembly Logic
The sequence below describes a typical application. Stud centres and fixing details vary with the project's structural and acoustic requirements — the project specification governs.
Schematic layout drawing — not a scaled shop drawing.
- 01The wall axis is marked on the floor; the U track is fixed to floor and ceiling with anchors, over an acoustic sealing tape.
- 02C studs are set vertically inside the U track, typically at 60 cm centres — reduced to 40 cm for tall walls or heavy finishes.
- 03At door and window openings the C studs are doubled up for reinforcement.
- 04One face of the wall is boarded, services and insulation are installed, then the second face is closed.
Product Codes and Dimensions
| Product Code | Product | Thickness |
|---|---|---|

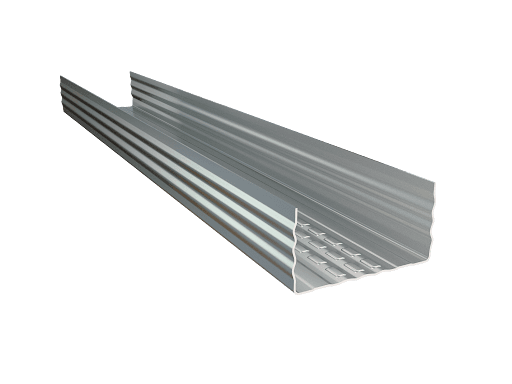

| DW-U50 | Wall U50 Profile | 0,30 mm |
| DW-U75 | Wall U75 Profile | 0,35 mm |

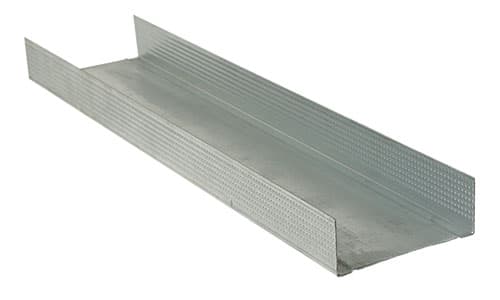

| DW-U100 | Wall U100 Profile | 0,40 mm |

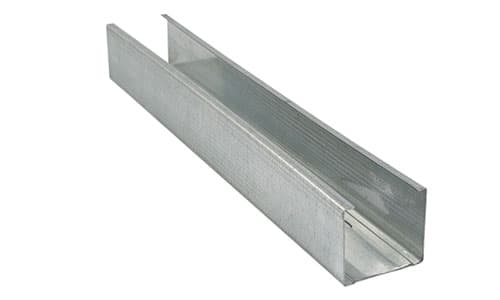

| DW-C50 | Wall C50 Profile | 0,35 mm |

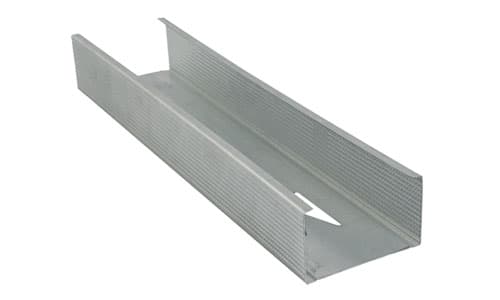

| DW-C75-040 | Wall C75 Profile | 0,40 mm |
| DW-C75-042 | Wall C75 Profile | 0,42 mm |
| DW-C75-050 | Wall C75 Profile | 0,50 mm |

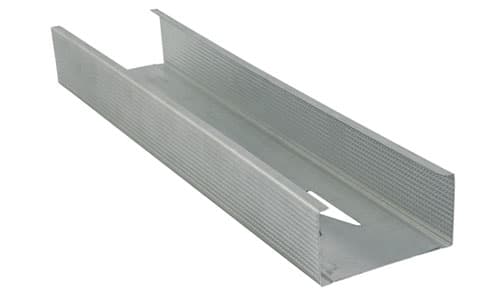

| DW-C100 | Wall C100 Profile | 0,40 mm |
Metal framing components for gypsum plasterboard systems — Definitions, requirements and test methods
The profile sections we produce fall within the product family defined by this standard. Contact us for batch-specific declarations and certification requests.
